Laser Cut and Formed Weldment Channel
Laser Cut, Formed +/-.030 .25″ Steel for frame weldment. Fiber laser technology used in this application.
- Services
-
Laser CuttingFabrication and WeldingValue Added ServicesMetal Finishing
- Industry
-
AutomotiveArchitecturalAgriculturalAerospaceDairy / FoodOil, Gas / Power GenerationDefenseGeneral Industrial ManufacturingCustom Tooling
- Materials
-
¼″ thick HRPO Carbon Steel

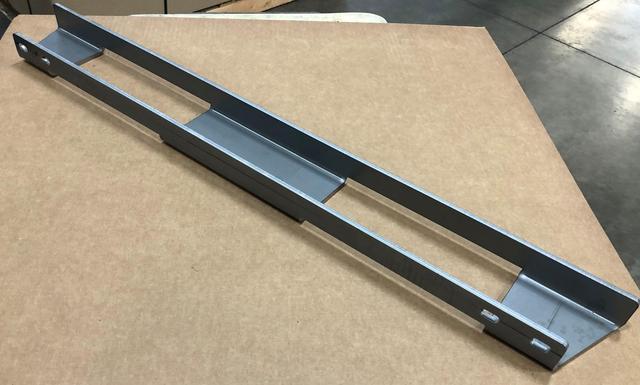

¼″ thick HRPO formed channel for a custom frame. 35.5″ long by 4.0″ wide with 1.80″ flanges
Laser Cut and Formed Weldment Channel
¼″ thick HRPO formed channel for a custom frame. 35.5″ long by 4.0″ wide with 1.80″ flanges
Laser Cut and Formed Weldment Channel
1.80″ tall flanges with minimum inside radius.
Laser Cut and Formed Weldment Channel
¼″ thick Steel brack, general tolerances held were +/- .015″
Laser Cut and Formed Weldment Channel
All dimensions and tolerances are held per ASME Y14.5m-2009
